Product Details
＋

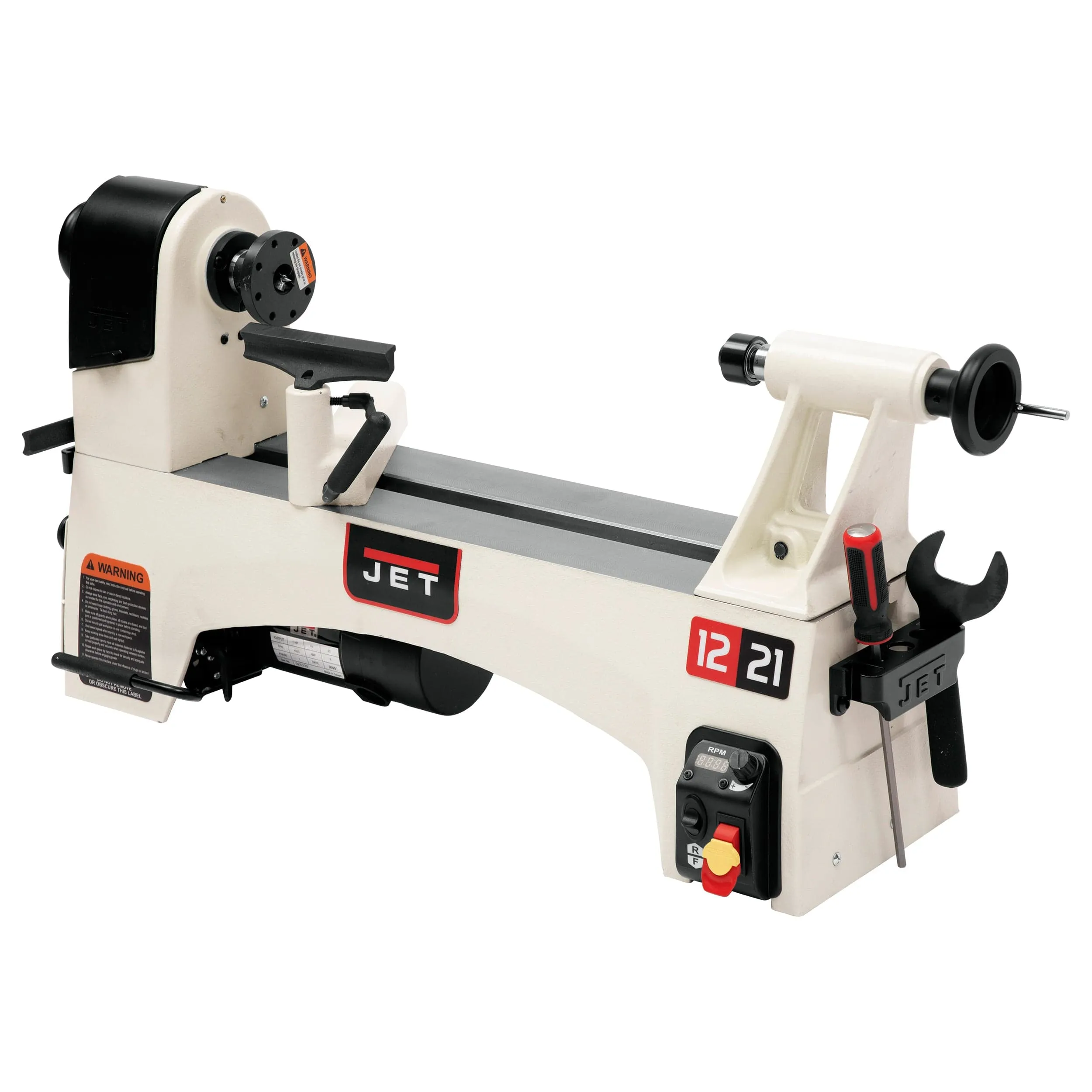

The Jet® 1221VS Variable Speed Lathe is a powerful and versatile wood lathe designed for precision and ease of use. With a variable speed control and digital readout, users can easily adjust the rate of the spindle to match the material. The 1 HP motor provides smooth and consistent performance. At the same time, the compact size makes it ideal for small workshops or hobbyists with limited space. The 1221VS is lightweight and easy to move, making it convenient to store when not in use. The heavy-duty cast-iron construction reduces vibrations and ensures a smooth and accurate turning experience. The user-friendly controls, large control panel, and multiple spindle positions make it easy to work on a wide range of projects and achieve precise cuts and finishes. Overall, the Jet 1221VS Lathe is an excellent choice for woodworkers of all skill levels who seek precision, ease of use, and versatility.
Features:
- Unrivaled speed control with a digital RPM readout
- Variable speed range of 60-3600 RPM
- Option for slower RPM allows for precision jobs, such as threading
- Smooth transition between forward and reverse operation
- Controls are conveniently located
- Patent-pending belt tension system
- Easy access to belts
- Spindle designed with industrial-style pre loaded bearing
- 24 integrated indexing positions
- Acme Thread on tailstock quill
Specifications:
- Product: Lathe
- Motor Type: 120V DC
- Power Transfer: Belt
- Motor Power: 1 HP
- Motor Phase: Single or 1Ph
- Motor Voltage: 115V
- Motor Amps: 6A
- Recommended Circuit Size: 10A
- Speed Ranges (RPM): 60-900, 110-1800, 220-3600
- Spindle Bore: 3/8"
- Spindle Taper: MT2
- Tailstock Quill Taper: MT2
- Swing Over Bed: 12-1/2"
- Swing Over Tool Rest Base: 9-9/20"
- Number of Indexing Positions: 24
- Distance Between Centers: 20-1/2"
- Tailstock Quill Travel: 2-1/4"
- Spindle Thread: 1" - 8 TPI
- Bed Width: 6-5/8"
- Height - Floor to Spindle Centerline: 14-3/4"
- Stand Footprint (L x W): 30-1/2" x 9"
- Machine Dimensions (L x W x H): 33-3/5" x 11" x 17-7/10"
- Net Weight: 121-1/4 lbs.
What's Included:
- (1) Jet® 12" x 21" Variable Speed Wood Lathe - 1 HP 1 Ph 115V - 1221VS
- (1) Live Center
- (1) Spur Center
- (1) Spindle Wrench
- (1) Knockout Rod
- (2) Tool Caddies
- (4) Button Head Screws, 5/16" x 1/2"
- (2) Tool Supports - 6" and 10"
- (1) 3" Face Plate
- (1) Owner's Manual
- (1) Warranty Card
